全國服務熱線MHBHL-H輪輻荷重傳感器傳感器采用輪輻式結構，利用剪切應力原理，具有外形低、抗偏載、精度高、強度好等特點。
額定載荷 Rated load | 100kg～300t |
靈敏度 Output sensitivity | 2.0±0.05 mV/V |
非線性 Non-linearity | ±0.05～±0.1 %F?S |
滯后誤差 Lag error | ±0.05 %F?S |
重復性誤差 Repeatability | ±0.05 %F?S |
蠕變 Creep | ±0.05 %F?S |
零點溫度系數 Zero temperature coefficient | ±0.05 %F?S/10℃ |
靈敏度溫度系數 Sensitivity temperature coefficient | ±0.05 %F?S/10℃ |
輸入電阻 Input resistance | 750±30Ω或 1.45K±50Ω |
輸出電阻 Input resistance | 700±5Ω或 1.4K±5Ω |
工作溫度范圍 | -20℃～+70℃ |
安全過載 Safe overload | 150 %F?S |
絕緣電阻 Insulation resistance | ≥2000MΩ |
激勵電壓 Incentive voltage | 5V～12V |
防護等級 Protection class | IP65、IP66 |
材質 Material | 合金鋼、不銹鋼 |
線纜 Cable. | Φ5×3M |

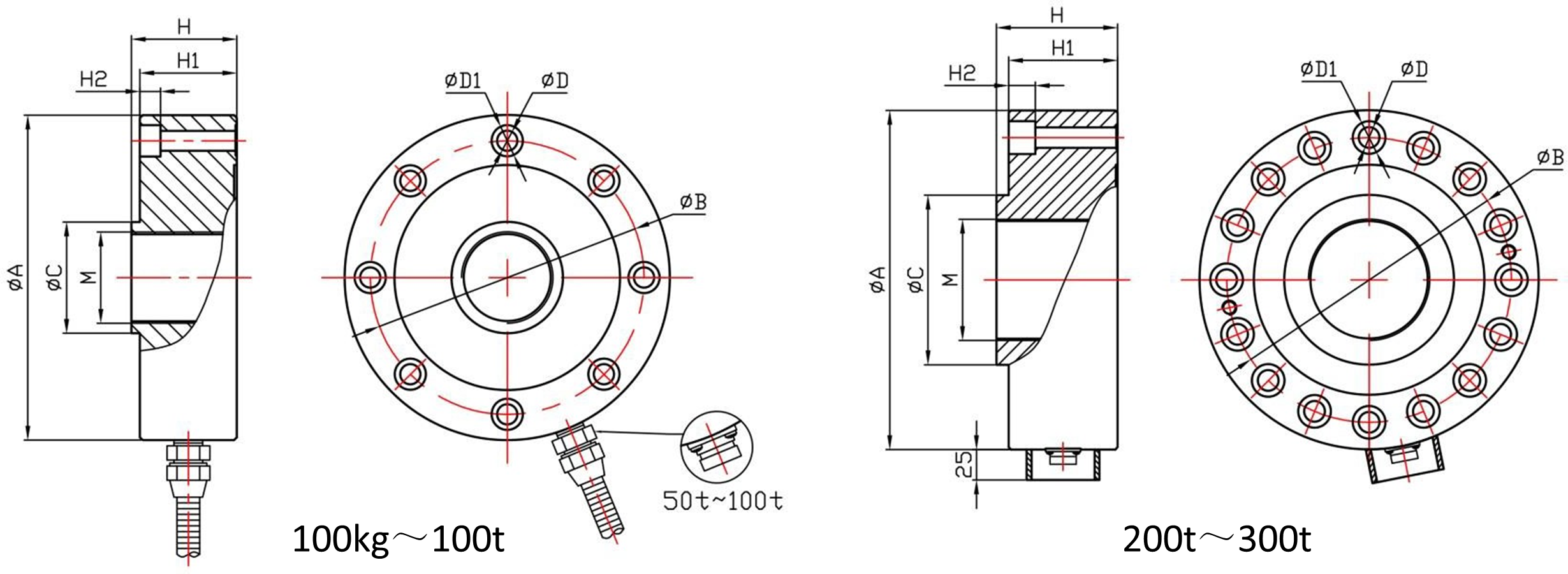

量程 | ?A | ?B | ?C | M | H | H1 | H2 | ?D | ?D1 |
100kg～2t | ?75 | ?60 | ?18 | M12X1.75 | 22 | 20 | 6 | 8-?6 | 8-?10 |
3t～5t | ?88 | ?74 | ?25 | M16X1.5 | 34 | 31 | 7.2 | 8-?7 | 8-?11 |
10t～20t | ?114 | ?96 | ?39 | M32X1.5 | 37 | 34 | 10.5 | 8-?9 | 8-?14 |
30t | ?125 | ?105 | ?46 | M32X1.5 | 45 | 42 | 10.5 | 8-?9 | 8-?14 |
50t | ?148 | ?125 | ?60 | M40X1.5 | 55 | 50 | 11 | 8-?11 | 8-?18 |
100t | ?198 | ?170 | ?95 | M64X3 | 70 | 65 | 15 | 16-?13 | 16-?20 |
200t | ?280 | ?235 | ?140 | M100X3 | 100 | 90 | 22 | 16-?17 | 16-?27 |
300t | ?350 | ?300 | ?190 | M130X3 | 120 | 110 | 25 | 16-?22 | 16-?34 |
